CIFAR-10 Image Classification with CNNs

Overview

The goal is to teach a computer to look at a small photo and correctly name what object it shows.

• CIFAR-10 is a benchmark image dataset spanning 10 everyday object classes used to train and test computer vision models.
• Objective: build a model that takes a tiny 32x32 color image and predicts which of the 10 categories it belongs to.
• Image classification is a core deep learning task that powers vision systems in self-driving, search, and tagging.
• Approach: build a convolutional neural network (CNN) from scratch, then apply transfer learning to push accuracy higher.

Methodology

flowchart LR
  A[Image Dataset] --> B[Resize / Normalize / Augment]
  B --> C["CNN: Conv + Pooling layers"]
  C --> D[Dense + Softmax]
  D --> E[Train w/ Early Stopping]
  E --> F["Evaluate: Accuracy and Confusion Matrix"]

The Data (10 Classes)

The dataset holds 60,000 labeled photos split across ten common object types like planes, cats, and trucks.

• 10 classes: airplanes, cars, birds, cats, deer, dogs, frogs, horses, ships, and trucks.
• 50,000 training images and 10,000 test images, loaded directly from the Keras library as NumPy arrays.
• Each image is a 32x32 grid of pixels with 3 color channels (R, G, B), stored as a 4-dimensional array.
• Labels arrive encoded as numbers (e.g. 6 = frog), mapped to readable category names for interpretation.

Sample Images & Preprocessing

Before training, the raw pixel values are rescaled and the labels reformatted so the network can learn efficiently.

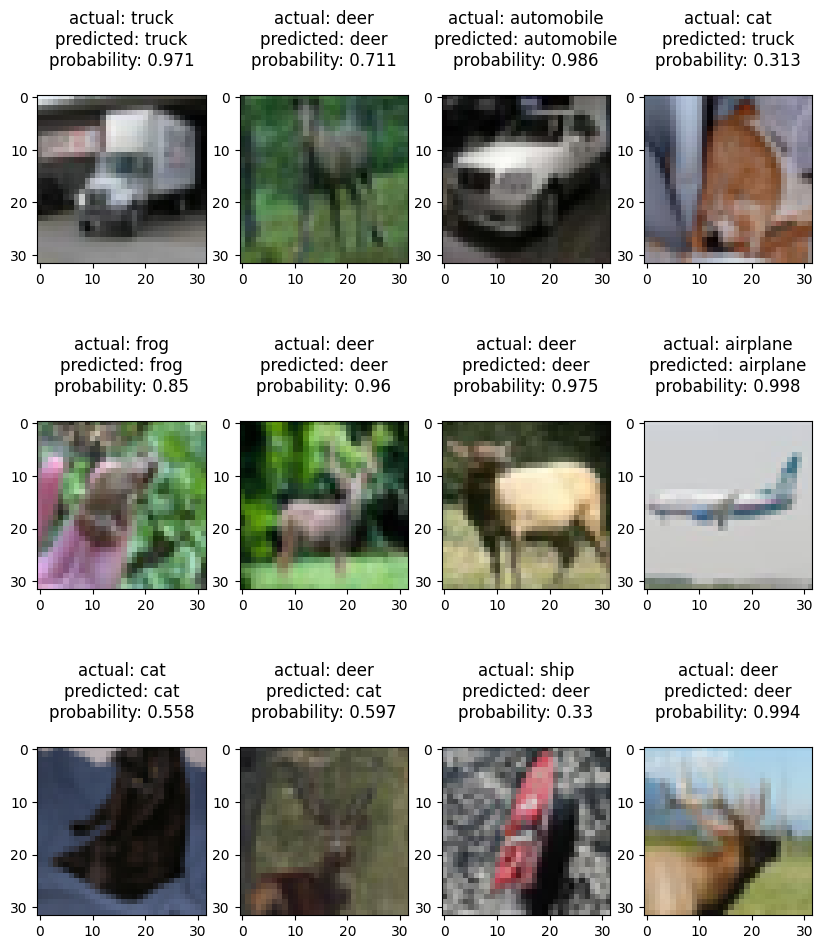

• Random sample images are reconstructed from NumPy arrays with matplotlib's imshow to inspect the data.
• Pixel values range 0-255, so every pixel is divided by 255 to normalize inputs to a 0-1 scale.
• Normalization speeds up training, reduces the chance of getting stuck at local optima, and stabilizes weights.
• Targets are one-hot encoded into 10 columns so the output layer can produce a probability per class.

CNN Architecture

A network of stacked layers learns visual patterns, refined across several versions to fix overfitting.

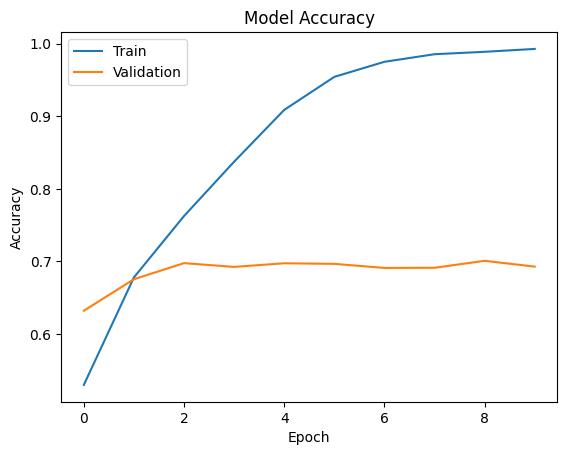

• The first CNN, built sequentially with LeakyReLU activation, trained 2,105,066 parameters but heavily overfit.
• Compiled with categorical cross-entropy loss and accuracy as the metric for this multi-class problem.

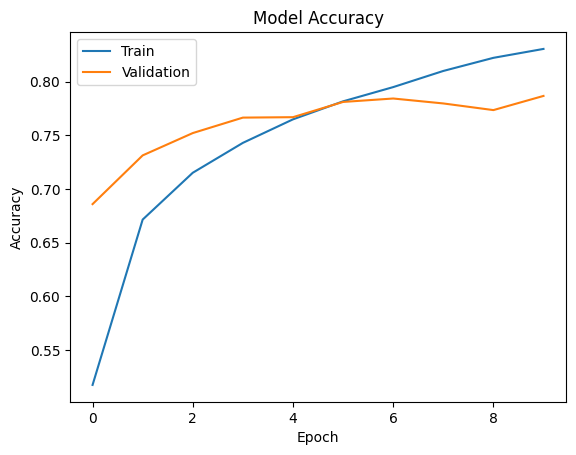

• Dropout layers were added to curb overfitting, then more convolutional plus max-pooling layers cut parameters ~50%.

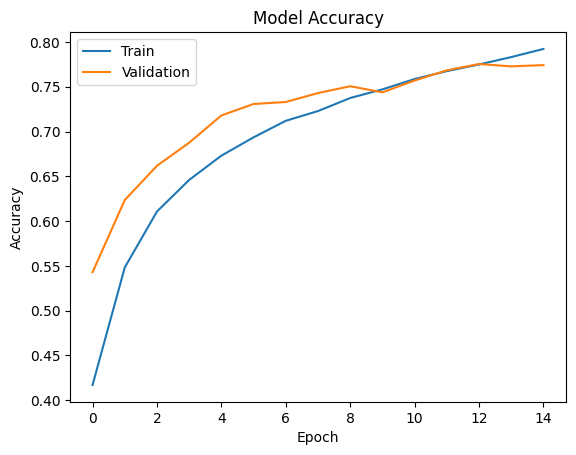

• The third iteration solved overfitting and gave generalized performance with strong validation accuracy.

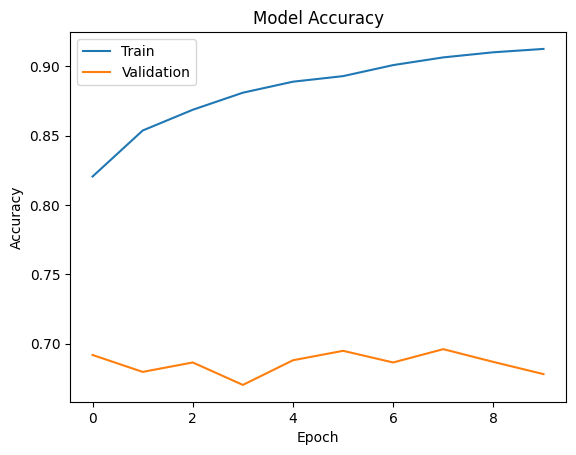

• Transfer learning then reused pre-trained VGG16 (14.7M+ frozen parameters) to boost accuracy faster.

Results & Accuracy

The best model correctly identifies about four out of five unseen photos, performing consistently on new data.

• Transfer learning with VGG16 delivered the best validation accuracy without training any convolutional layers.
• The final model reached about 79% accuracy on the held-out test data.
• Test accuracy closely matched validation accuracy, confirming the model generalizes rather than memorizes.
• Recall varied across classes, meaning the model identifies some objects well but struggles with others.

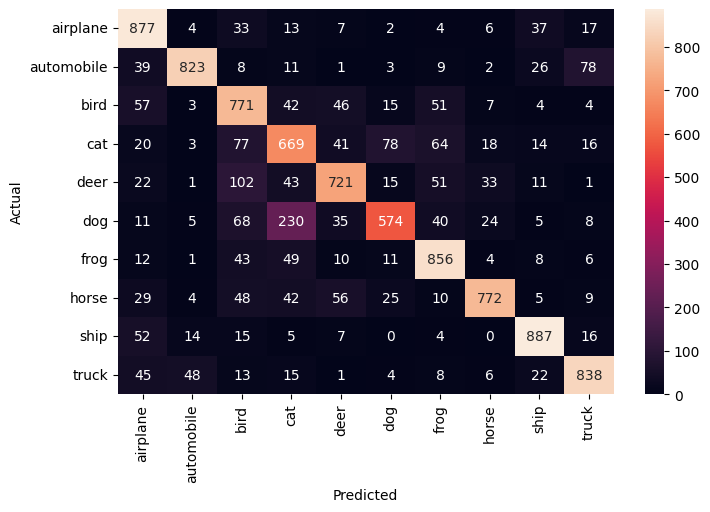

• A confusion heatmap reveals which class pairs are most often mixed up in the predictions.

Key Takeaways

Combining a custom-built network with a pre-trained one produced an accurate, well-generalizing image classifier.

• A from-scratch CNN can classify CIFAR-10's 10 object classes once overfitting is controlled with dropout and pooling.
• Iterative architecture changes mattered more than raw parameter count for improving generalization.
• Transfer learning from VGG16 achieved the strongest results with far less training of the convolutional base.
• The final classifier reached ~79% test accuracy, comparable to its validation performance.
• Built with: Python, TensorFlow, Keras (VGG16), NumPy, Matplotlib, and scikit-learn.

More Visualizations

Tech Stack

• numpy — fast numerical arrays
• scikit-learn — modeling, pipelines, and evaluation
• seaborn — statistical visualization
• matplotlib — plotting
• tensorflow — deep-learning framework
• keras — high-level neural-network API

Attribution

This project was completed as part of the MIT Applied Data Science Program (MIT IDSS / Great Learning). The program provided the case-study scaffolding; the analysis, code, and results are my own. Published with permission, for portfolio use only.
