Food Image Classification with CNNs

Overview

We taught a computer to look at a photo of food and decide which of three food types it is.

• Goal: classify food photos into three categories - Bread, Soup, and Vegetable-Fruit - directly from raw pixels.
• Image classification is a core deep learning task enabled by larger datasets and modern compute.
• Approach: build and compare convolutional neural networks (CNNs) that learn visual features end to end.
• Success means high test accuracy with few confusions between visually similar food classes.

Methodology

flowchart LR
  A[Image Dataset] --> B[Resize / Normalize / Augment]
  B --> C["CNN: Conv + Pooling layers"]
  C --> D[Dense + Softmax]
  D --> E[Train w/ Early Stopping]
  E --> F["Evaluate: Accuracy and Confusion Matrix"]

The Data

We started with folders of food photos already sorted into training and testing piles.

• Three balanced classes: Bread, Soup, and Vegetable-Fruit, organized into Training and Testing folders.
• Each image is read into a NumPy array and paired with its class index as a labeled tuple.
• Labels are one-hot encoded so each class becomes a vector, e.g. Bread = [1, 0, 0].
• Class distribution was checked to confirm the three categories are reasonably balanced.
• Images are resized to a common 150x150x3 RGB shape for the network input.

Sample Images & Preprocessing

We looked at example pictures from each food type and cleaned them up before training.

• Bread items are mostly round, oval, or elliptical and often show grilled or charred portions.
• Soup images feature liquid in a container or utensil, with a distinct glare from light reflection.
• Vegetable-Fruit images stand out with vibrant colors and repeating shapes across the frame.
• Pixel values are normalized to speed up training and reduce the risk of getting stuck in local optima.
• Utensils appearing in both Bread and Soup photos were flagged as a likely source of confusion.

CNN Architecture

We built two layered networks, the second one designed to avoid memorizing the training photos.

• Model 1: three convolutional blocks, each a Conv2D + MaxPooling2D layer, starting at 64 filters with 3x3 kernels.
• Model 1 learns about 1,185,107 parameters with relu activations and 'same' padding - large and prone to overfitting.
• Model 2: four convolutional blocks adding a Dropout layer after each, starting at 256 filters with 5x5 kernels.
• Model 2 trains about 1,099,171 parameters; Dropout randomly disables neurons to curb overfitting.
• Note: this run used a reduced 2-epoch schedule for speed, so accuracy figures are indicative, not final.

Results & Accuracy

The second network did a noticeably better job and confused fewer photos than the first.

• Model 1 overfit: training accuracy climbed steadily while validation accuracy lagged behind.
• In the full run Model 1 reached roughly 70% test accuracy, often mistaking Bread for Soup.
• Adding Dropout in Model 2 closed the train-validation gap and reduced misclassifications.
• Bread vs Soup stayed the hardest pair due to shared dishes and utensils, but errors dropped clearly.

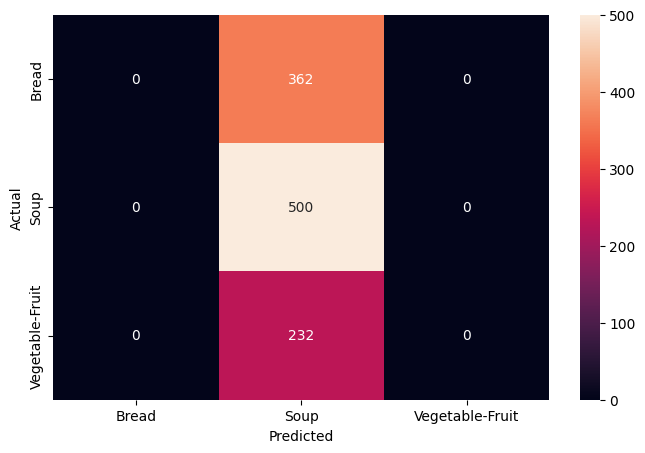

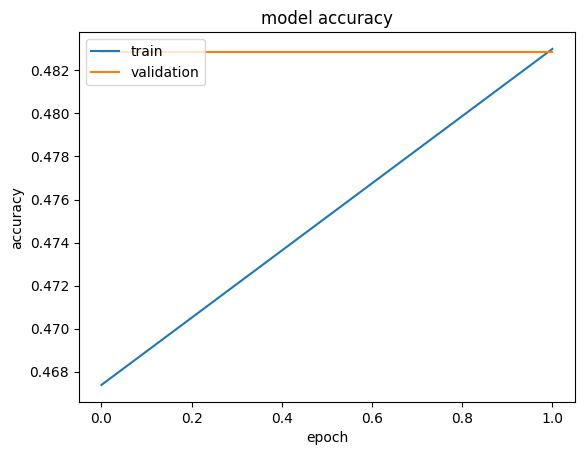

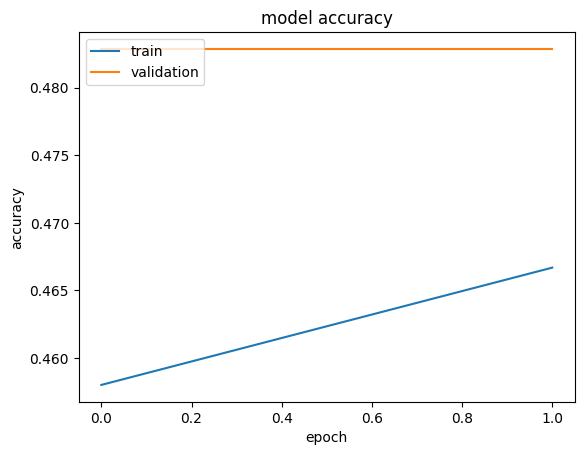

• With the reduced 2-epoch re-run, curves and confusion matrices show the same qualitative trend, just lower numbers.

Key Takeaways

A well-regularized CNN can reliably sort food photos, and there is still room to push accuracy higher.

• Model 2 was the better classifier, correctly predicting a randomly chosen test image.
• Dropout and a deeper architecture were the key levers that improved generalization over Model 1.
• Visually similar classes that share objects (Bread/Soup utensils) remain the main error source.
• Next steps: more epochs, alternative architectures, and different optimizers to lift test accuracy further.
• Built with: TensorFlow, Keras, NumPy, Matplotlib, scikit-learn

Tech Stack

• pandas — data wrangling and tabular manipulation
• numpy — fast numerical arrays
• scikit-learn — modeling, pipelines, and evaluation
• seaborn — statistical visualization
• matplotlib — plotting
• tensorflow — deep-learning framework
• keras — high-level neural-network API

Attribution

This project was completed as part of the MIT Applied Data Science Program (MIT IDSS / Great Learning). The program provided the case-study scaffolding; the analysis, code, and results are my own. Published with permission, for portfolio use only.
