Rice Type Classification with CNNs

Overview

We taught a computer to look at a single grain of rice and name which of five varieties it is.

• Rice supplies 21% of global per-capita energy and 15% of protein, so reliable variety sorting matters at scale.
• Goal: automatically classify magnified rice-grain images into 5 types: Arborio, Basmati, Ipsala, Jasmine, Karacadag.
• Manual grading of grain type is slow and subjective; a vision model offers fast, consistent, repeatable sorting.
• Success means not only high accuracy but also low inference time, since the model is meant for real production lines.
• Framed as a 5-class image classification task benchmarking ANN versus CNN architectures.

Methodology

flowchart LR
  A[Image Dataset] --> B[Resize / Normalize / Augment]
  B --> C["CNN: Conv + Pooling layers"]
  C --> D[Dense + Softmax]
  D --> E[Train w/ Early Stopping]
  E --> F["Evaluate: Accuracy and Confusion Matrix"]

The Data (Rice Varieties)

We started with about 74,000 labeled photos of rice grains split evenly across the five types.

• Dataset holds roughly 74K magnified images split across the 5 rice classes (Arborio, Basmati, Ipsala, Jasmine, Karacadag).
• Each image shows a single grain centered on a plain black background with no clutter or competing objects.
• Images already appear in many orientations, so rotation-based data augmentation was unnecessary.
• Data was organized into train, validation, and test folders fed through Keras ImageDataGenerator loaders.
• Grains were resized to a small 48x48 grayscale format to keep training tractable across tens of thousands of images.

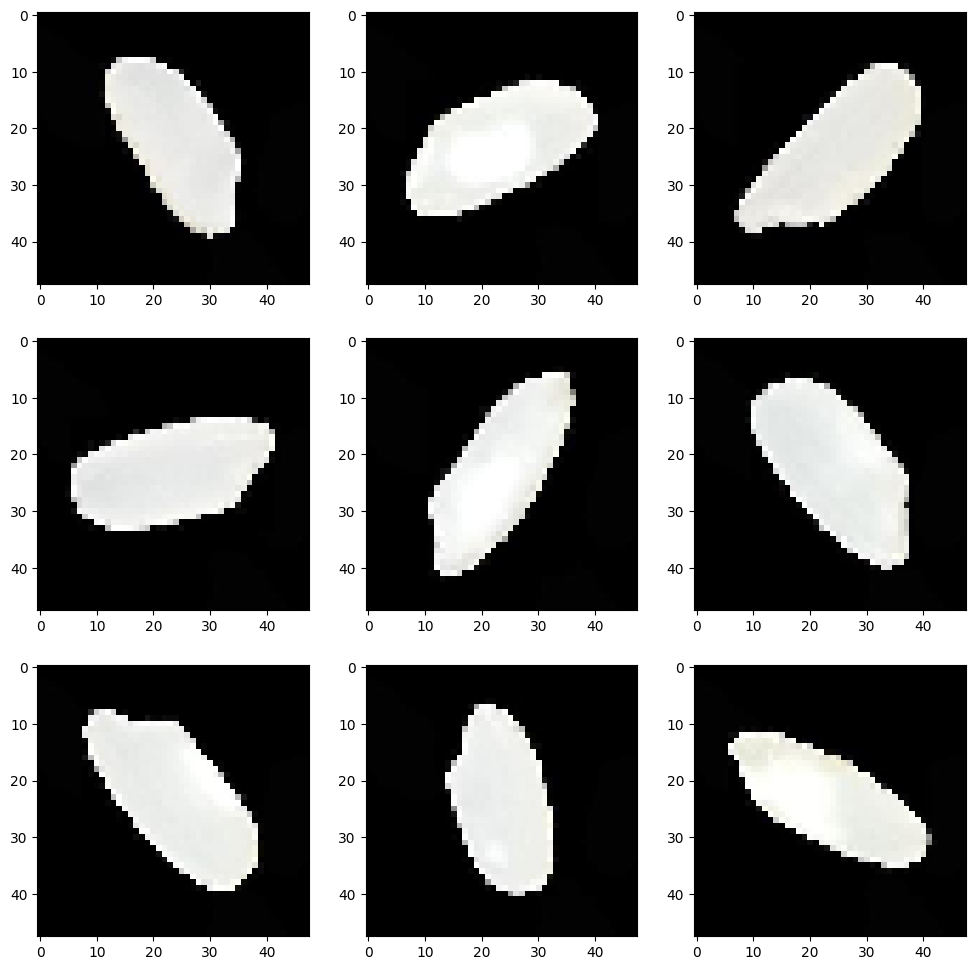

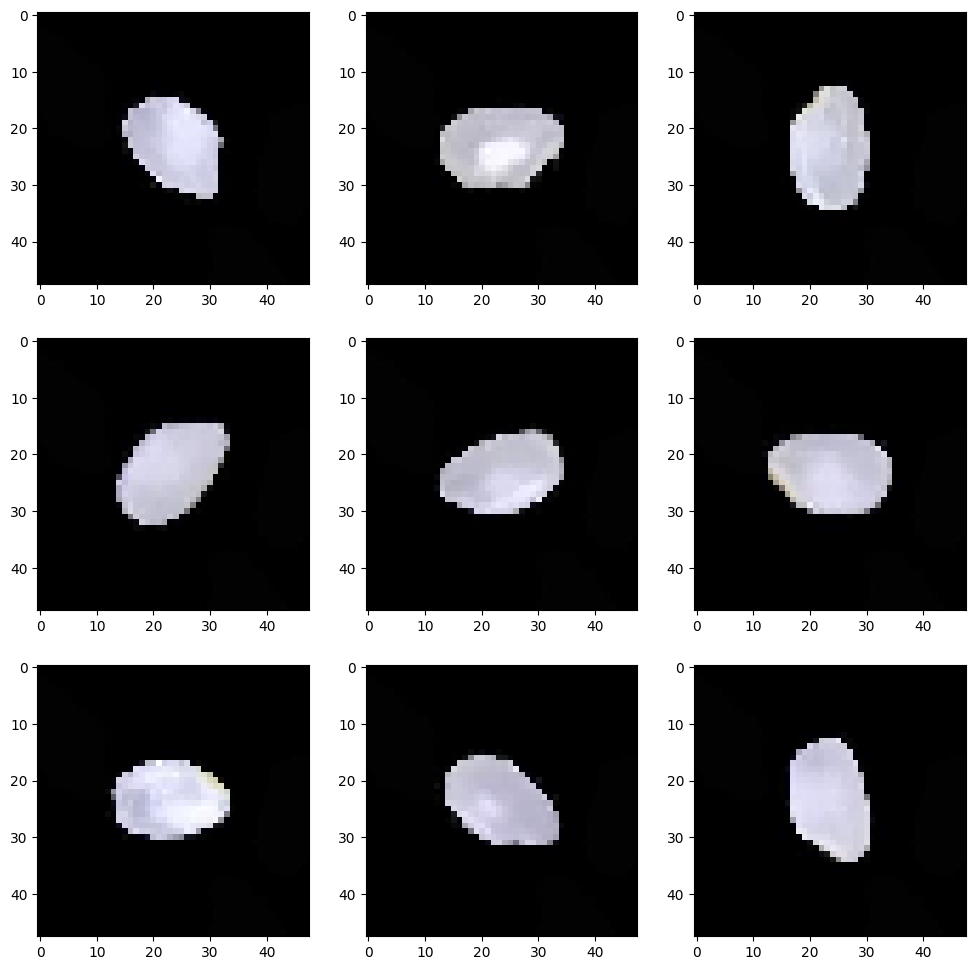

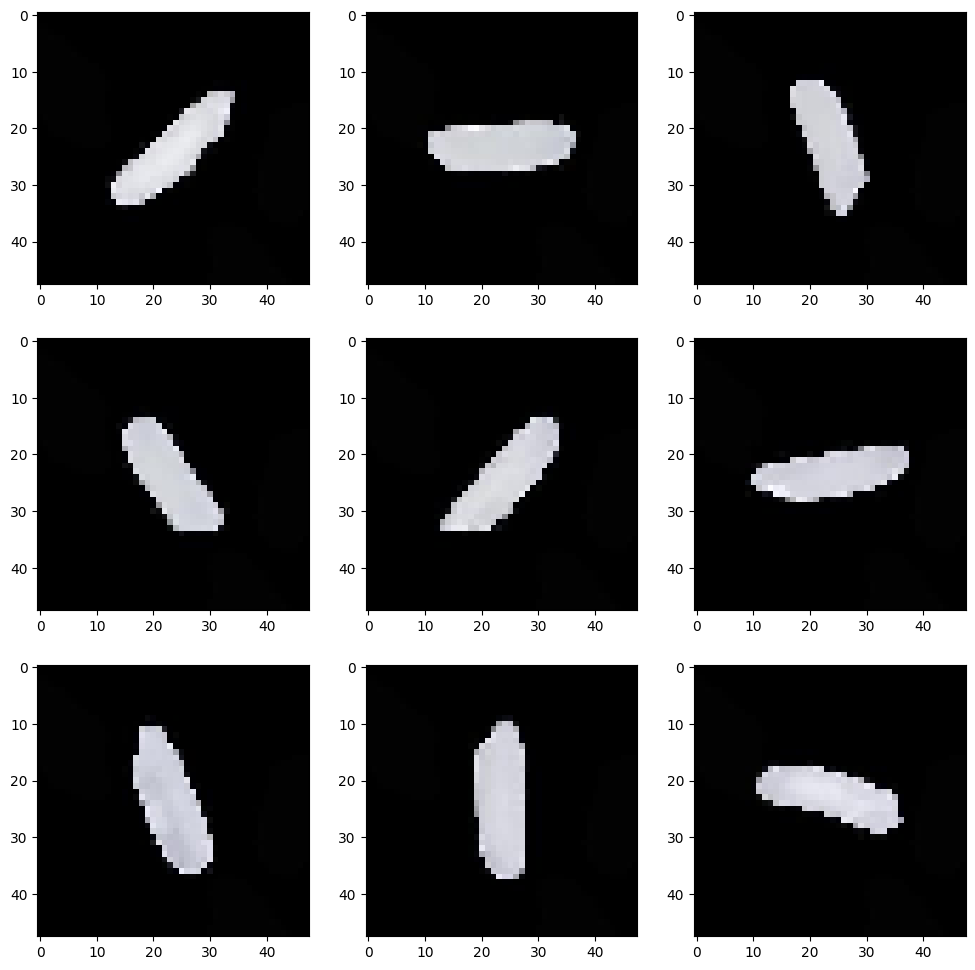

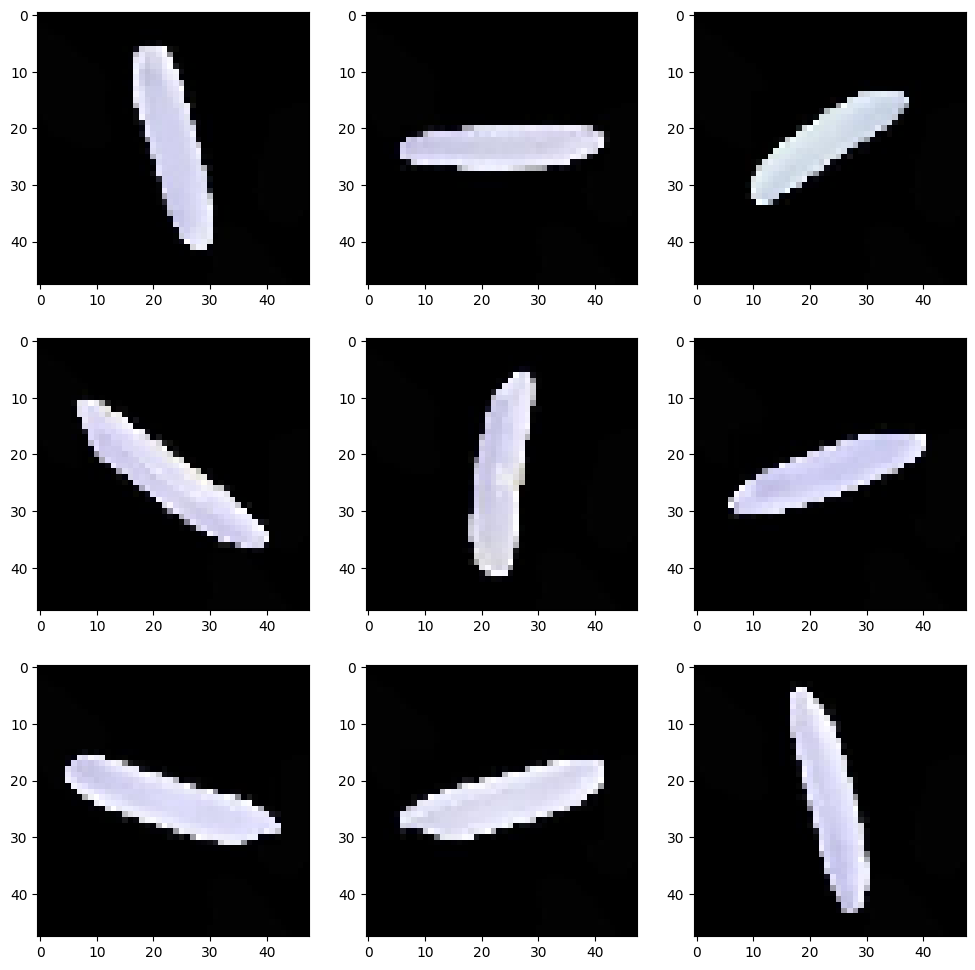

Sample Images & Preprocessing

We looked at example grains from each type and shrank every image to a small standard size before training.

• Visualized each variety side by side to confirm shape is the main distinguishing feature of the grains.
• Images are simple: just the grain silhouette on black, with no curves or texture beyond grain shape.
• All grains are perfectly centered, which lets even a plain ANN perform surprisingly well on these images.
• Pixel values were rescaled and images standardized to 48x48 grayscale via the image data generators.
• Basmati and Jasmine share long grains and Karacadag resembles Arborio, hinting at where confusion may occur.

CNN Architecture

We built and compared several network designs, settling on a compact convolutional model with dropout.

• Baseline ANN flattened the 48x48 images into 2,304 inputs feeding Dense layers (512, 256) into a 5-way softmax.
• Base CNN used 4 convolutional blocks (Conv2D + MaxPooling) to learn grain shape features directly from pixels.
• Final model trimmed to 3 convolutional blocks, each paired with a Dropout layer to curb overfitting and shrink parameters.
• Models compiled with Adam and categorical cross-entropy, ending in a 5-unit softmax for the five rice classes.
• Trained for just 2 epochs to cap compute time on the ~74K-image set, trading some accuracy for speed.

Results & Accuracy

Even with very short training the smaller convolutional model classified most grains correctly with few mix-ups.

• With only 2 epochs, the smaller CNN still reached training accuracy near 92% and the best test accuracy of the models tried.
• Dropout layers kept the smaller CNN from overfitting, so its test accuracy edged out the larger CNN and the ANN.
• The confusion matrix shows very few misclassifications across the five varieties at this reduced epoch budget.
• Typical errors are intuitive: a Basmati read as Jasmine (both long-grained) and Karacadag confused with Arborio.
• Inference time fell from 106 ms/step for the base CNN to about 55 ms/step for the smaller model, aiding deployment.

Key Takeaways

A small, well-regularized convolutional network sorts rice varieties accurately and fast enough for real use.

• A compact CNN with dropout beat both a larger CNN and a plain ANN on accuracy while running noticeably faster.
• Centered, clean grain images let even simple models do well, but convolution still wins for shape-driven distinctions.
• Efficiency means both accuracy and inference speed, since the model targets real production sorting lines.
• More epochs would likely push accuracy higher; 2 epochs were used here purely to limit compute time.
• Built with: TensorFlow/Keras, NumPy, pandas, matplotlib, seaborn, PIL, and scikit-learn.

More Visualizations

Tech Stack

• pandas — data wrangling and tabular manipulation
• numpy — fast numerical arrays
• scikit-learn — modeling, pipelines, and evaluation
• seaborn — statistical visualization
• matplotlib — plotting
• tensorflow — deep-learning framework
• keras — high-level neural-network API

Attribution

This project was completed as part of the MIT Applied Data Science Program (MIT IDSS / Great Learning). The program provided the case-study scaffolding; the analysis, code, and results are my own. Published with permission, for portfolio use only.
